X-Telcom Palm Vein Terminal

WavePass500

Deploy Your Own Server. Own Your Data. Scale to Millions of Users.

A fixed Android-based palm vein recognition terminal designed for payment, cashier systems, identity verification, and self-service applications.

Request Demo → Request SDK Start POC
Deploy on Your Own Server
Own Your Data
RGB + IR Dual-Mode Recognition
~0.35s Verification Speed
Android 11 Platform
MDM Centralized Management
SDK / API Integration
Supports Millions of Users
Why WavePass500?

Built for Payment, Cashier and Identity Verification

WavePass500 is designed for organizations that require secure biometric authentication in payment, retail, financial services, healthcare, government, and self-service environments.

Key Benefits

Contactless Palm Authentication

Hygienic, touchless verification suitable for high-traffic environments.

Fast Verification (~0.35 Seconds)

Industry-leading speed for seamless user experience at scale.

Internal Biometric Features

Palm vein patterns are internal and extremely difficult to spoof or replicate.

Free 10,000 User ID License for POC

Test and validate your use case before commercial deployment at no cost.

Large-Scale Deployment Support

Scalable from 100K to millions of users with no re-enrollment required.

Customer-Owned Deployment Architecture

Full control over your infrastructure, data, and system operations.

Optional Access Control Interfaces

Wiegand and relay port support for physical access control integration.

Traditional Biometrics

  • Fingerprint or face only
  • Surface-level features
  • Limited scalability
  • Single-modal matching

WavePass500

  • RGB + IR dual-mode
  • Internal vein patterns
  • Millions of users
  • Four-layer AI matching

💳 Payment Integration Without EMV/PCI Complexity

WavePass500 is designed as a biometric authentication terminal rather than a financial POS terminal. When the device is used only for palm vein authentication, identity verification, cashier authentication, membership verification, or payment authorization workflows -- and does not process bank card information or connect directly to banking payment interfaces -- the device itself typically does not require EMV or PCI certification.

This allows solution providers to integrate palm vein authentication into existing payment ecosystems without the complexity, cost, and certification cycle associated with financial payment terminals.

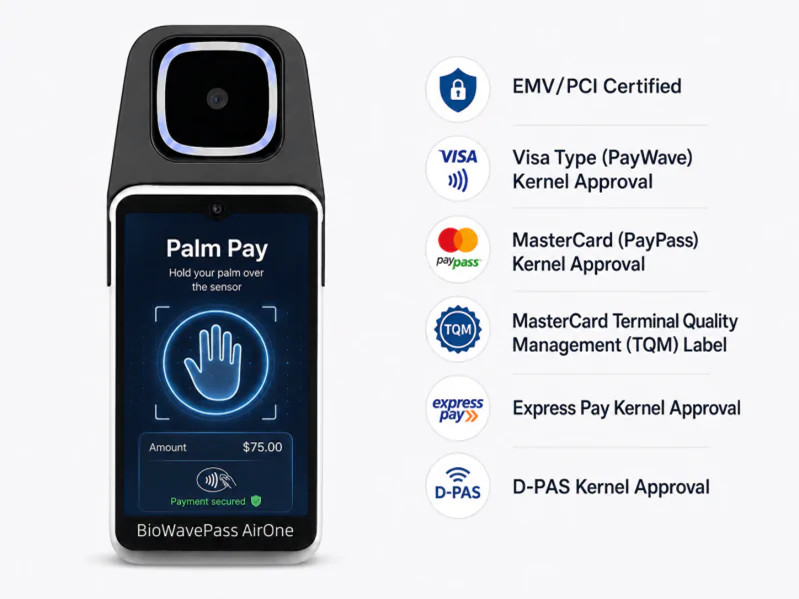

ℹ️ For projects requiring direct card payment acceptance, X-Telcom recommends using AirOne.

WavePass500 terminal in a retail cashier environment
AI Algorithm & Platform

More Than Traditional Palm Vein Recognition

WavePass500 uses X-Telcom's RGB + IR dual-mode biometric architecture -- an AI-powered matching system designed for large-scale deployments.

Registration Data Captured

🖼
RGB Palm Image High-resolution color capture
🔦
IR Palm Vein Image Infrared vascular mapping
🖐
Palm Print Features End-side feature extraction
🩸
Palm Vein Features End-side vein feature points

The platform uploads both images and feature points simultaneously, helping improve matching speed and accuracy across large user databases.

Algorithm Benefits

Faster search speed
Better matching stability
Higher recognition accuracy
Future algorithm upgrades
No re-enrollment required
Small → Large Model upgrade
99%

Recognition success rate

~0.35s

Verification speed

5M+

Users tested in private DB

Four-Layer Verification Architecture

1
End-side Palm Print Feature Local feature extraction on device for fast initial matching
2
End-side Palm Vein Feature On-device IR vein feature comparison layer
3
Server-side Palm Print Feature (RGB) Deep model matching from uploaded RGB image on server
4
Server-side Palm Vein Feature (IR) Large-model vein matching from IR image for final verification

This is not a traditional IR-only solution. It is an AI-powered biometric matching architecture designed for large-scale deployments, with seamless upgrade paths from Small Model to Large Model without requiring users to register again.

Integration & Technical Specifications

Easy Integration with Existing Platforms

WavePass500 supports SDK/API integration across a wide range of business systems, with MDM support for centralized management of large device fleets.

Supported Integration Platforms

Payment Platforms
Cashier Systems
Banking Applications
eKYC Platforms
Government Systems
Healthcare Systems
Self-Service Kiosks
Visitor Management

MDM Centralized Device Management

Manage hundreds or thousands of WavePass500 terminals from a centralized platform across multiple sites and locations.

Remote device monitoring
Remote app deployment
OTA firmware updates
Device policy management
Kiosk mode configuration
Device lock and control
Multi-site management
Fleet health dashboard

Technical Overview

Specification WavePass500
Product Type Fixed Palm Vein Recognition Terminal
Operating System Android 11
Recognition Method RGB + IR Dual-Mode Recognition
Verification Speed ~0.35 Seconds
Deployment Own-Server Deployment
Device Management MDM Supported
SDK / API Supported
Connectivity WiFi 2.4G, RJ45
Interfaces USB Port, Serial Port, Access Control Relay, Wiegand
Power Supply DC Cable
Battery No (Fixed Installation)
Best For Payment, Cashier, Identity Verification, Self-Service
🎁

Free 10,000 User ID License available for POC testing. Contact X-Telcom to request your sample device and SDK documentation.

Security, Privacy & Data Ownership

Customer-Controlled Biometric Architecture

All palm vein data and images are encrypted with AES-256 and stored on the customer's own server. X-Telcom does not store, manage, or participate in customer biometric data management.

AES-256 Encryption

All biometric data encrypted at rest and in transit using industry-standard AES-256 encryption.

Own-Server Deployment

Deploy entirely on your own infrastructure. No cloud dependency, no third-party data exposure.

GDPR-Aligned Architecture

Architecture designed to support GDPR compliance requirements for biometric data handling.

Reduced Vendor Lock-In

Customer owns the system and data. No dependency on X-Telcom's servers or cloud services.

Future-Proof Algorithm Storage

Storing both images and features supports algorithm upgrades without re-enrollment.

Customer Benefits

  • Own your system and infrastructure
  • Own your biometric data completely
  • Deploy on your own private server
  • Support private and air-gapped deployment
  • Reduce vendor lock-in and dependency
  • GDPR-aligned data ownership architecture
  • X-Telcom has zero access to your user data

Recommended Registration Storage

RGB Palm Image
IR Palm Vein Image
Palm Print Feature
Palm Vein Feature

Storing all four data types supports future algorithm upgrades and large-scale expansion without requiring users to register again.

Typical Applications

Deployed Across Industries Worldwide

WavePass500 delivers secure biometric authentication for financial services, retail, self-service, government, and healthcare environments.

Financial Services

  • Palm payment authentication
  • Banking customer verification
  • eKYC identity verification
  • Digital identity verification
  • ATM biometric authentication

Retail & Self-Service

  • Cashier system authentication
  • Self-service payment terminals
  • Retail membership verification
  • Smart store solutions
  • Loyalty program verification

Government & Healthcare

  • Citizen identity verification
  • Subsidy distribution systems
  • Patient identification
  • Healthcare staff authentication
  • Border and access control
🏦Banking
💳Fintech
🏛Government
🛒Retail
🏥Healthcare
🪪Identity
Frequently Asked Questions

Everything You Need to Know

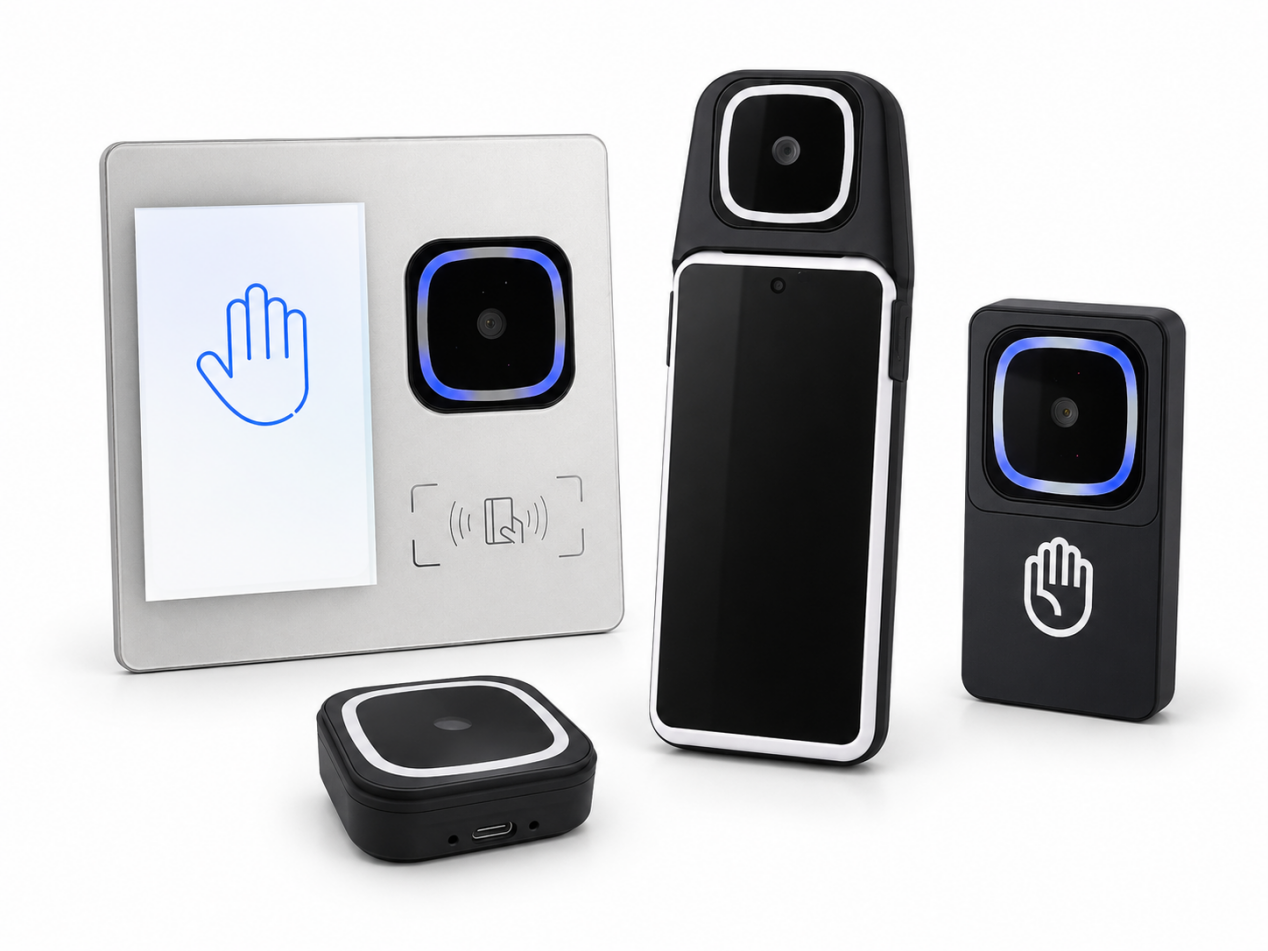

WavePass500 terminal close-up

Still Have Questions?

Our technical team is ready to help you evaluate WavePass500 for your specific use case. Request a demo, sample device, or SDK documentation.

Contact Technical Team → Request SDK
Is WavePass500 a payment terminal?
WavePass500 is a palm recognition terminal that integrates with existing cashier and payment platforms through SDK/API development. It is not an EMV/PCI-certified financial POS terminal. It handles biometric authentication rather than direct payment processing.
Does WavePass500 require EMV or PCI certification?
Not necessarily. If WavePass500 does not process bank card information, does not store payment credentials, and does not directly connect to banking payment networks, the device itself typically does not require EMV or PCI certification. For projects requiring direct card payment acceptance, X-Telcom recommends using AirOne.
Can WavePass500 be deployed on our own server?
Yes. WavePass500 supports customer-controlled own-server deployment. Your biometric data and system infrastructure remain entirely under your control. X-Telcom does not require cloud connectivity or access to your deployment environment.
Who owns the biometric data?
The customer owns and controls both the system and biometric data. X-Telcom does not store, manage, or have access to customer biometric data. All data is encrypted with AES-256 and stored exclusively on the customer's own server infrastructure.
Can WavePass500 support millions of users?
Yes. The Large Model algorithm package supports deployments from 100,000 users to millions of users. The system has been tested in private databases of up to 5 million users with a recognition success rate of up to 99%.
Does X-Telcom provide SDK and technical support?
Yes. X-Telcom provides sample devices, SDK/API documentation, and technical support. Additional software development services can be discussed separately as a paid service. Contact our technical team to discuss your integration requirements.
Can customers test before commercial deployment?
Yes. X-Telcom provides a free 10,000 User ID License for POC testing. This allows you to validate the technology, test integration with your existing systems, and evaluate performance before committing to a full commercial deployment.
Ready to Get Started?

Build Your Next Palm Vein Authentication Project

WavePass500 combines RGB + IR recognition, AI-powered biometric matching, MDM device management, own-server deployment, and scalable algorithms into one enterprise-ready biometric platform.
