● Smart Chip Card Fingerprint Scanner

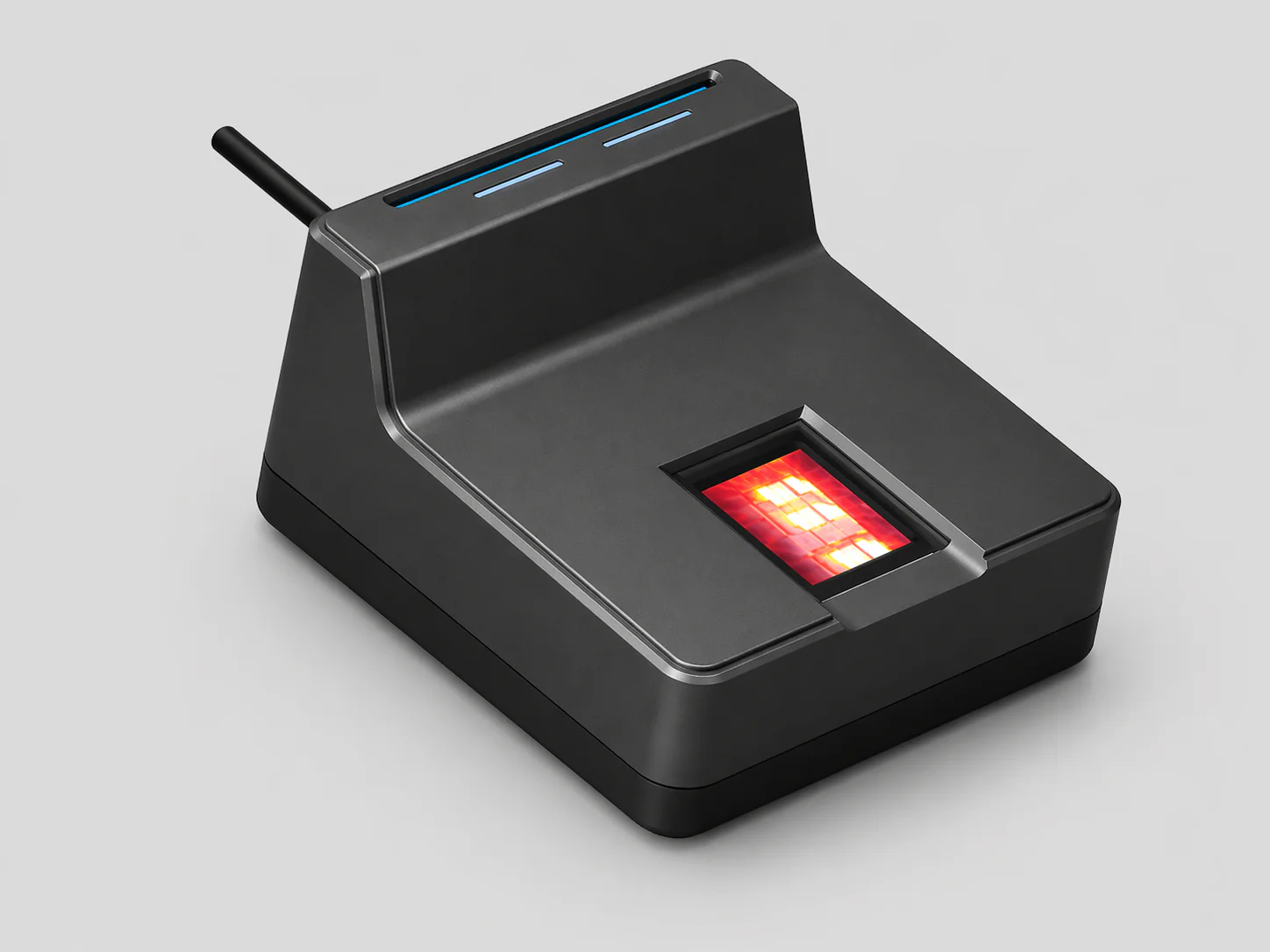

XT-SF01 Smart Chip Card
Fingerprint Scanner
Designed for projects that require both contact smart card reading and fingerprint authentication in one compact device. ISO7816 compliant with FAP20/FAP30 optical fingerprint module options.
ISO7816 Contact Card
FAP20 / FAP30 Optical
500 DPI
FBI-Certified Config
Optional LFD
Product Overview
- The XT-SF01 Smart Chip Card Fingerprint Scanner is designed for projects that require both contact smart card reading and fingerprint authentication in one compact device.
- It supports ISO7816 contact card standards and can be configured with a FAP20 optical fingerprint module as standard, with an optional upgrade to a FAP30 optical fingerprint module.
- This device is suitable for identity verification, cardholder authentication, secure registration, and other applications where smart chip card data and biometric fingerprint capture need to work together.
Key Features
- ISO7816 Contact Card Support for secure contact smart card communication.
- Integrated Fingerprint Verification in one compact hardware device.
- Standard FAP20 Optical Fingerprint Module with 500 DPI and support for FBI-certified configuration.
- Optional FAP30 Optical Fingerprint Module for higher project requirements.
- Optional LFD capability in the FAP30 version for stronger anti-spoofing protection.
- Compact and low power design for easier integration.
Smart Card Specifications
Card Interface
Contact Card Slots
1
Card Protocol
ISO7816
Card Voltage
A: 5V / B: 3V
Full-size SIM Slots
2
Power
Power Supply
DC (5±5%) V
R/W Module Current
<100mA
Current Consumption
<100mA
Fingerprint Module Options
Standard
FAP20
- Optical fingerprint module
- Resolution: 500 DPI
- Supports FBI-certified configuration
Optional Upgrade
FAP30
- Optical fingerprint module
- For higher project requirements
- Optional LFD (Liveness Fingerprint Detection)
- Stronger anti-spoofing protection
Application Scenarios
Smart card identity verification
Secure user registration
SIM registration systems
Telecom identity authentication
Banking or fintech KYC terminals
Government eID projects
Access control or secure cardholder verification systems
Working Environment
Operating Temperature
-5℃ to 50℃
Relative Humidity
20% to 95%
Quick Specs
Card Standard
ISO7816
Card Slots
1 Contact + 2 SIM
FP Module
FAP20 / FAP30
Resolution
500 DPI
LFD
Optional (FAP30)
Power
DC 5V (±5%)
Current
<100mA
✉
