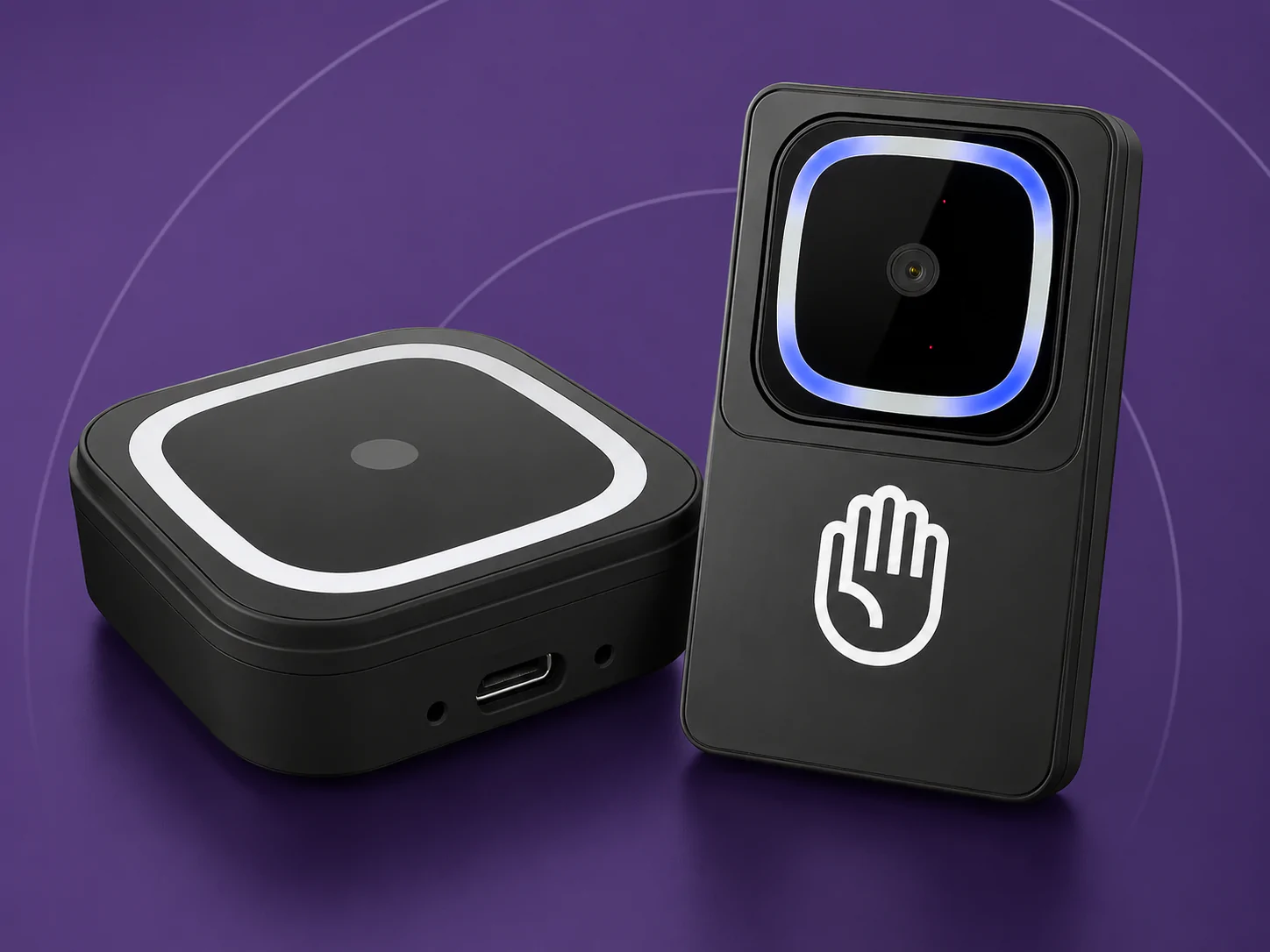

A biometric sensor designed around the host system.
PalmVein01 is a compact USB palm vein sensor module for embedded projects. PalmVein01 Pro adds independent power for field, mobile and unstable USB environments.
RGB + IR palm vein sensor
Capture palm surface detail and subdermal vein information through one compact module, then connect registration and matching functions to your application through the supplied integration package.
Technical specifications.
Built for local verification.
The module captures complementary palm information, checks capture quality and produces biometric data for verification by the configured matching service.

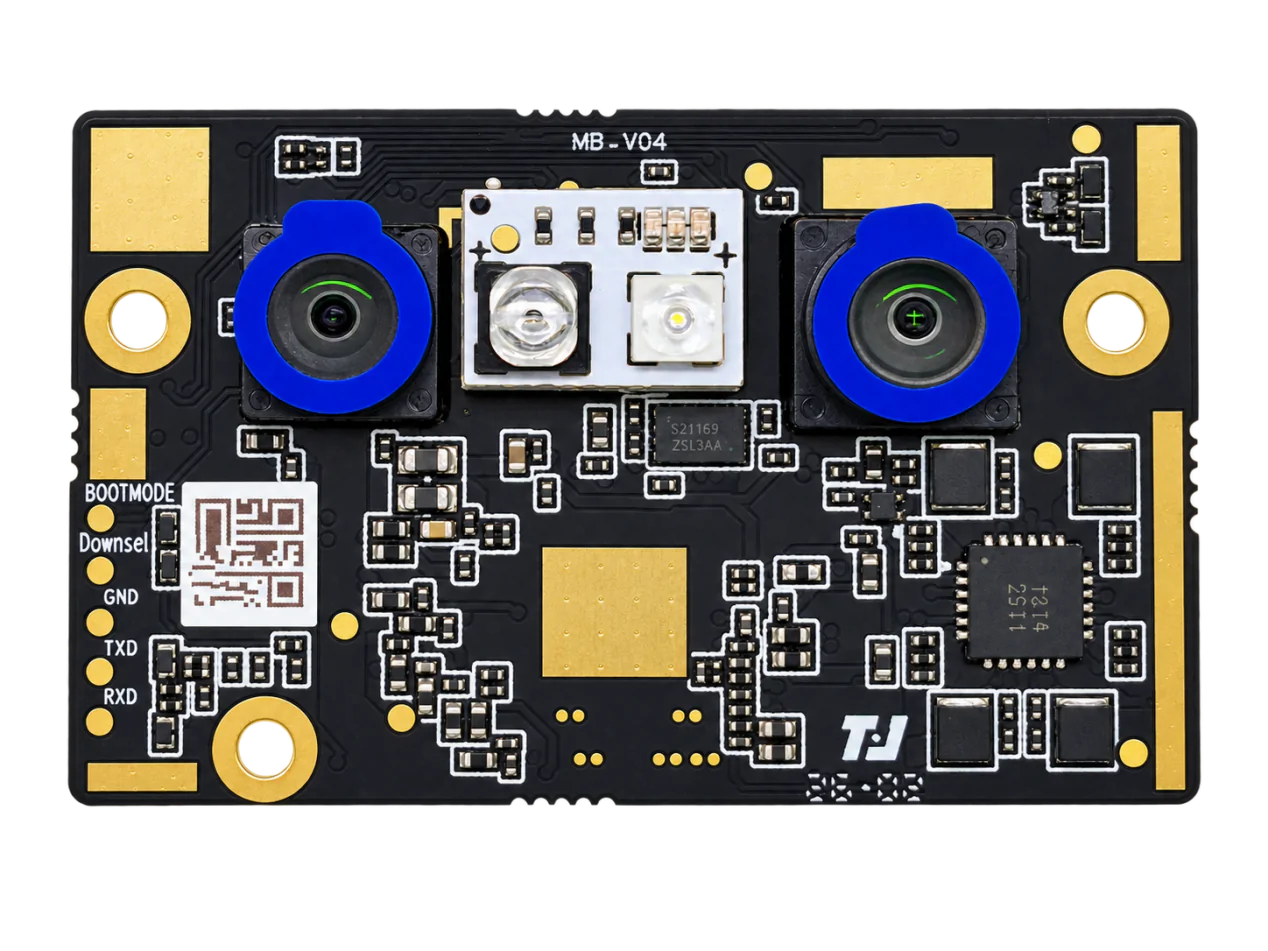

IR only, no RGB
Plan mechanical, electrical and software integration together.
Reliable biometric performance depends on more than an API call. Enclosure geometry, power delivery, palm presentation and host software should be validated as one system.
Optical access and palm approach
Design a clear field of view and a natural hand path while protecting the optical window from obstruction and unwanted reflections.
- Front-panel opening alignment
- Mounting tolerance clearance
- User hand approach path
- Service accessibility access
Stable power and USB communication
Confirm the host can deliver stable current during illumination and capture. Use PalmVein01 Pro when independent power is required.
- 5V / 1.5A supply planning
- USB data integrity verification
- Cable retention and routing
- Thermal load validation
Capture, registration and matching
Integrate device control, quality feedback, feature handling and match results into the host application and business workflow.
- Windows / Linux / Android support
- SDK and API call integration
- 1:1 or 1:N matching modes
- Error-state and fallback handling
PalmVein01 or PalmVein01 Pro?
PalmVein01 and PalmVein01 Pro use the same RGB + IR biometric foundation. Their key difference is power architecture: PalmVein01 relies on stable host USB power, while PalmVein01 Pro adds a built-in battery for independent, continuous operation.
| ITEM | PALMVEIN01 | PALMVEIN01 PRO |
|---|---|---|
| PRODUCT TYPE | Standard USB module | Self-powered USB scanner |
| PRIMARY USE | Built-in integration | Flexible external / semi-embedded |
| POWER SOURCE | Host USB power | Built-in battery |
| BATTERY | None | Approx. 3000mAh |
| WORK WHILE CHARGING | Not applicable | Supported |
| BEST FIT | ATM, kiosk, POS, embedded | Field, industrial, unstable power |
Choose PalmVein01
Use the standard model when the host USB port can provide a stable recommended 5V / 1.5A supply. Designed for built-in ATM, kiosk, POS and access-control integration.
Choose PalmVein01 Pro
Use the Pro model when host USB power is limited or unstable. Its approximately 3000mAh battery supports independent operation -- about 6-8 hours of use and charging while working.
When to Choose PalmVein01A
Choose PalmVein01A when your solution requires IR palm vein recognition with 1:1 local verification. It is particularly suitable for time attendance, access control, and turnstile systems where users can first present an ID card, QR code, employee number, or another unique identifier and then verify their identity using palm vein recognition.
PalmVein01A is the right choice when:
- 1:1 local verification meets the application requirements.
- User identification is completed before palm vein verification.
- Offline processing and local data security are required.
- The terminal needs an integrated QR code scanning camera.
- The solution does not require RGB palmprint recognition, 1:N identification, or cloud-based matching.
- Integration with Android, Windows, or Linux platforms is required.
From engineering sample to deployed device fleet.
X-Telcom supports system integrators with sensor hardware, SDK/API packages, matching architecture and project-specific integration guidance.
OEM integration partnership
Align sensor selection, enclosure design, host power, SDK workflow and server architecture before moving from prototype to volume deployment.
HARDWARE + SOFTWARE + MATCHINGEngineering samples
Validate optical placement, capture behavior, USB stability and application integration using real hardware before committing to production volumes.
POC READYScalable licensing
Start with a 10,000-user POC license and plan larger algorithm capacity as the deployment grows across your customer base.
10K TO MILLIONSCustomer-owned data
Deploy matching on infrastructure owned and controlled by the client for data sovereignty and GDPR-aligned architectural design.
PRIVATE SERVERIntegration support
Access SDK/API documentation, test services and technical communication channels for project implementation and ongoing support.
WIN · LINUX · ANDROIDFrom concept to deployment -- we support the full integration lifecycle.
One palm vein sensor.
Multiple host platforms.
Build the module into new equipment or add it to an existing terminal where secure, intentional and contactless identity is required.
ATM
Cardless access, transaction verification and account recovery workflows for banking hardware.
Banking hardwareSelf-service kiosk
Government, healthcare, ticketing and customer identity terminals with embedded identity.
Embedded identityPOS terminal
Palm payment, member recognition and biometric transaction approval for fintech integration.
Fintech integrationAccess control
Contactless authentication for gates, doors, cabinets and secure zones in physical security.
Physical securityReady to integrate a palm vein sensor module?
Share your host platform, enclosure concept, target operating system, power environment and expected user scale. X-Telcom can help define a practical engineering evaluation.
